[Spring Framework] intellij에서 Spring legacy project 구성하기



STS 와 달리 Intellij에는 Spring legacy 프로젝트를 직접적으로 생성할 수 있는 템플릿이 존재하지 않는다. 이러한 이유로 Spring framework를 사용하기 위해 Maven의 Web application 구조에 맞추어 프로젝트를 구성해야 하지만,  Intellij Ulitimate 라이선스에서 제공하는 Maven Archetype를 활용해 Spring Legacy 프로젝트를  좀 더 쉽게 구성할 수 있다.









1. Maven 프로젝트 생성

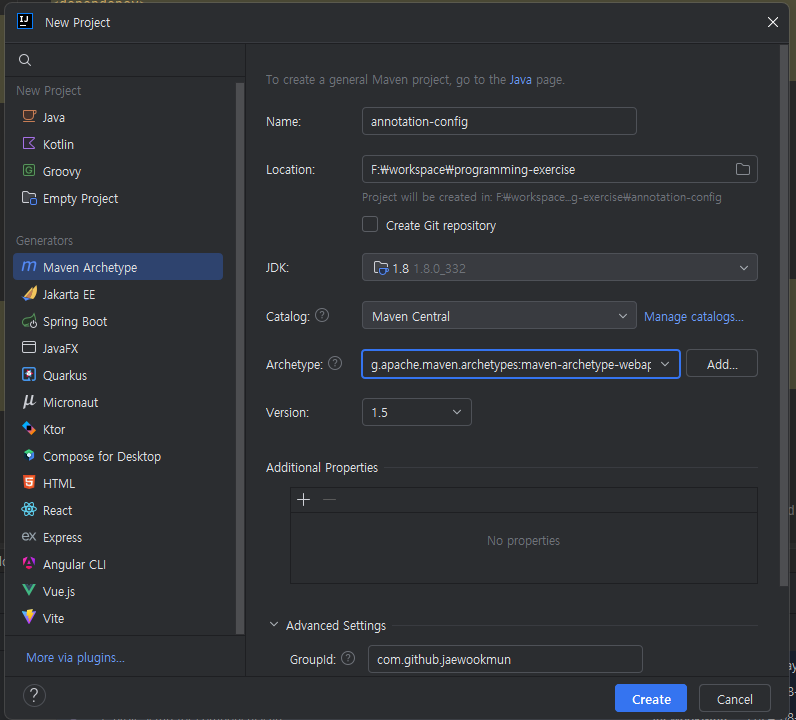

위 이미지 처럼 Maven Archetype을 Generators로 선택한 후 원하는 project 정보를 입력한다.

Catalog를 Maven Central로 변경한 뒤 maven 프로젝트를 위한 Archetype을 받아올 수 있도록 설정한다.



Archetype : org.apache.maven.archetypes:maven-archetype-webapp











2. Spring project로 설정파일 변경 및 생성

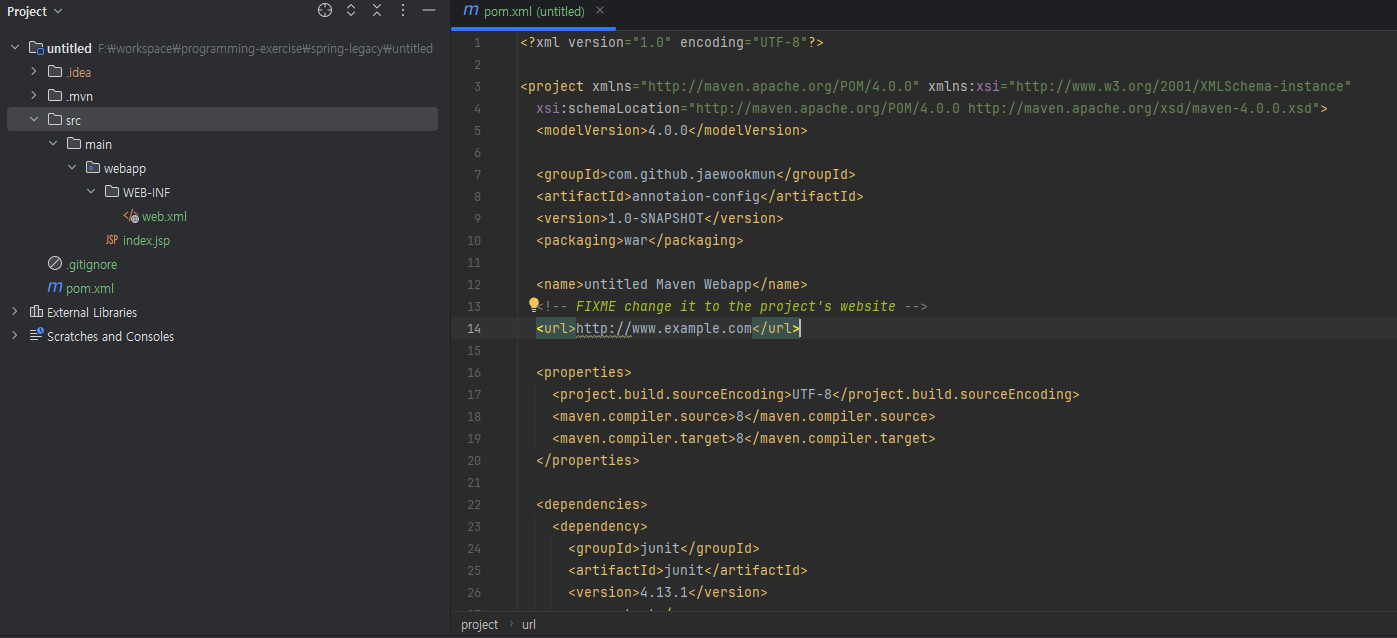

생성을 완료하면 위처럼 단순 maven 구조로 생성되며 이후 spring 프레임워크를 위한 설정 파일들을 작성하여 프로젝트를 구성한다.



※ 스프링 설정파일 (maven 구조내 java annotation 방식기반)

- 디렉토리 구조 설정

- pom.xml (프로젝트의 라이브러리 의존성 및 빌드 설정)

- web.xml (서블릿구조 설정)

- ApplicationConfig.java, ServletConfig.java (어플리케이션과 메인 서블릿에서 사용하는 설정)











2-1. 디렉토리 구조 설정





I.  src/main 하위에 java 디렉토리 및 패키지를 생성한다.

II. webapp/WEB-INF 하위에 views 폴더를 생성하고 jsp 파일을 views 폴더 내부에서 관리한다.











2-2. pom.xml



* 아래는 예시일 뿐이며 라이브러리 버전의 경우 구성하고자하는 프로젝트의 성격에 맞추어 메이븐 레포지토리에서 적절한 버전을 찾아 설정한다.

   [참고] 메이븐 레포지토리: https://mvnrepository.com/

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.github.jaewookmun</groupId>
    <artifactId>annotation-config</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>annotation-config Maven Webapp</name>
    <packaging>war</packaging>

    <properties>
        <java-version>1.8</java-version>
        <org.springframework-version>3.2.9.RELEASE</org.springframework-version>
        <org.aspectj-version>1.7.4</org.aspectj-version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${org.springframework-version}</version>
            <exclusions>
                <!-- Exclude Commons Logging in favor of SLF4j -->
                <exclusion>
                    <groupId>commons-logging</groupId>
                    <artifactId>commons-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>

        <!-- AspectJ -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>

        <!-- Logging -->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.17.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.17.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-jcl</artifactId>
            <version>2.17.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-slf4j-impl</artifactId>
            <version>2.17.1</version>
        </dependency>

        <!-- @Inject -->
        <dependency>
            <groupId>javax.inject</groupId>
            <artifactId>javax.inject</artifactId>
            <version>1</version>
        </dependency>

        <!-- Servlet -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.tomcat</groupId>
            <artifactId>tomcat-dbcp</artifactId>
            <version>7.0.70</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>

        <!-- Test -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>annotation-config</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>











2-3. web.xml



<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://Java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
    <context-param>
        <param-name>contextClass</param-name>
        <param-value>org.springframework.web.context.support.AnnotationConfigWebApplicationContext</param-value>
    </context-param>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>com.github.jaewookmun.annotationconfig.config.ApplicationConfig</param-value>
    </context-param>

    <!-- Creates the Spring Container shared by all Servlets and Filters -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- Processes application requests -->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextClass</param-name>
            <param-value>org.springframework.web.context.support.AnnotationConfigWebApplicationContext</param-value>
        </init-param>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>com.github.jaewookmun.annotationconfig.config.ServletConfig</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- filter -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>









2-4. ApplicationConfig / ServletConfig





package com.github.jaewookmun.annotationconfig.config;

import org.springframework.context.annotation.Configuration;

@Configuration
public class ApplicationConfig {

}





/**
 * Spring 버전 5.0 (Spring Boot 2) 부터 추상클래스 WebMvcConfigurerAdapter의 사용은 Deprecated 된다. <br>
 * [참고] - https://www.baeldung.com/web-mvc-configurer-adapter-deprecated <br>
 * <br>
 *
 * WebMvcConfigurer 인터페이스를 직접 구현하여 사용하는 것이 권장된다.
 */
@Configuration
@EnableWebMvc
@ComponentScan(
        basePackages = "com.github.jaewookmun.annotationconfig"
)
public class ServletConfig extends WebMvcConfigurerAdapter {

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry)
    {
        registry.addResourceHandler("/resources/**").addResourceLocations("/resources/");
    }

    @Bean
    public ViewResolver viewResolver() {
        InternalResourceViewResolver resolver = new InternalResourceViewResolver();
        resolver.setPrefix("/WEB-INF/views/");
        resolver.setSuffix(".jsp");

        return resolver;
    }
}











3. 스프링 구동 및 페이지 확인



@Controller
public class SampleController {

    @RequestMapping(value = "/hello-page", method = RequestMethod.GET)
    public String helloPage() {
        return "index";
    }

}







구동 로그

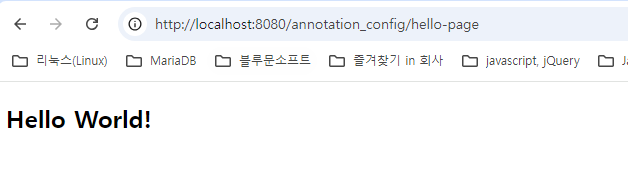

페이지 화면









---

[참고]



- github

https://github.com/JaewookMun/programming-exercise/tree/main/spring-legacy/annotation-config





- Java 기반 Container 설정 방식 : AnnotationConfigApplicationContext (Annotation 기반)

https://docs.spring.io/spring-framework/reference/core/beans/java/instantiating-container.html

Instantiating the Spring Container by Using AnnotationConfigApplicationContext :: Spring Framework
